Meet the ES80, your efficient partner for sustainable city logistics. Powered by a robust CATL 53.58kWh battery, it delivers a 180km full-load range on a single charge, with fast charging in just 1.5 hours. Its MAXUS electric drive axle (100kW/270N.m) provides strong, quiet power, handling a 4-ton GVW with ease. Designed for the modern driver, it comes equipped with smart features including a remote T-BOX monitoring system, LCD dashboard, cruise control, and safety tech like ESC. Compact, capable, and connected — the ES80 is built to transform urban delivery.
G.V.W. (kg) :
4000Payload (kg) :
1900Wheelbase (mm) :
2850Capacity (kWh) :
53.58Driving Range (Full Load, Comprehensive Condition ) :
180km
Product Overviews
ES80 Light Truck: Comprehensive Product Overview
● High-Efficiency Powertrain: Equipped with a CATL 53.58 kWh Lithium Iron Phosphate (LFP) battery featuring thermal management (electric heating) for reliability. Supports both DC and AC fast charging, achieving a full charge in just 1.5 hours.
● Substantial Real-World Range: Offers an impressive 180 km range under full-load conditions and up to 265 km under half-load, constant 40 km/h driving. Energy consumption is optimized at 19 kWh per 100 km (constant speed), ensuring low operating costs.
● High-Capacity Chassis: With a Gross Vehicle Weight (GVW) of 4,000 kg and a curb weight of 2,100 kg, it provides a robust payload capacity of approximately 1,900 kg. The optimized axle load distribution (1450/3045) ensures balanced and stable performance.
● Advanced Safety & Assistance: Features include Electronic Stability Control (ESC), a 90 km/h speed limiter, pedestrian reminder, seatbelt warning, and a Tire Pressure Monitoring System (optional) for all-around safety.
--------------占位---------------
Product Details
--------------占位---------------
Product Specifications
| Weight(kg) | GVW | 4000 |
| CVW (cab+chassis) | 2100 | |
| Load Distribution of FR/RR Axle | 1450/3045 | |
| Load Distribution of FR/RR Axle without Cargoes | 1039/891 | |
| Kerb Weight of FR/RR Axles | 93/117 | |
| Dimensions (mm) | Overall Dimension（L*W*H) | 5390×1789×2050 |
| Wheelbase | 2850 | |
| FR/RR Overhang | 1090/1450 | |
| FR/RR Tread | 1326/1380 | |
| Frame Beam Section Size | 144×50×4 | |
| Cab | Cab Type | Single |
| Width（mm) | 1545 | |
| No. of Seats | 2 | |
| Power Battery | Manufacturer | CATL |
| Capacity | 53.58kWh | |
| Layout | Tile | |
| Material Type | Lithium Iron Phosphate | |
| No. of Pack | 1 | |
| System Weight（kg） | 370 | |
| Energy Density（Wh/kg） | 145.59 | |
| Rated Voltage（V） | 334.88 | |
| Current (Ah) | 160 | |
| Charging Port Standard | China GB/T | |
| Charging Current Type | DC/AC | |
| Max. Charging Power（kW） | 58 | |
| Charging Time（h） | 1.5 | |
| Driving Range (full load, comprehensive condition) (km) | 180 | |
| Driving Range (half load, constant speed of 40km/h) | 265 | |
| Power Consumption per 100km (constant speed) | 19 | |
| e-Motor | Manufacturer | MAXUS |
| Model | TZ180XSA10 | |
| Driving Type | Rear wheel driving; motor mounted on rear axle | |
| Rated/Peak Power (kW) | 50/100 | |
| Rated/Peak Torque (N.m) | 110/270 | |
| Max. Rotation Speed (RPM) | 12000 | |
| Climbing Ability (%) | 25 | |
| Max. Speed (km/h) | 90 | |
| Chassis | No. of RR Tires | Rear Double Tire |
| Tire Size | 185R15LT 8PR | |
| Gearbox Model | / | |
| Gearbox Ratio | / | |
| RR Axle Ratio | 15.28 | |
| Steering Type and Structure | Electro Power Steering Circulating ball type， |
|
| Front Suspension | Leaf Spring 3 PCS | |
| Rear Suspension | Leaf Spring 4+5 PCS | |
| Service Brake | Hydraulic brake FR disc/ RR drum |
|
| Parking Brake | Pulling Cable Central Drum |
|
| Gearbox PTO Interface | — | |
| High-voltage Power Takeoff Port |
O | |
| ABS | — | |
| ABS+EBD | S | |
| ESC | — | |
| AEBS+LDWS | — | |
| Front Collision Warning System（FCW） | — | |
| Speed limit (90km/h) | S | |
| Cruise Control | S | |
| Radio+MP3 | — | |
| Radio+USB | S | |
| 10 Inch Touch Screen | O | |

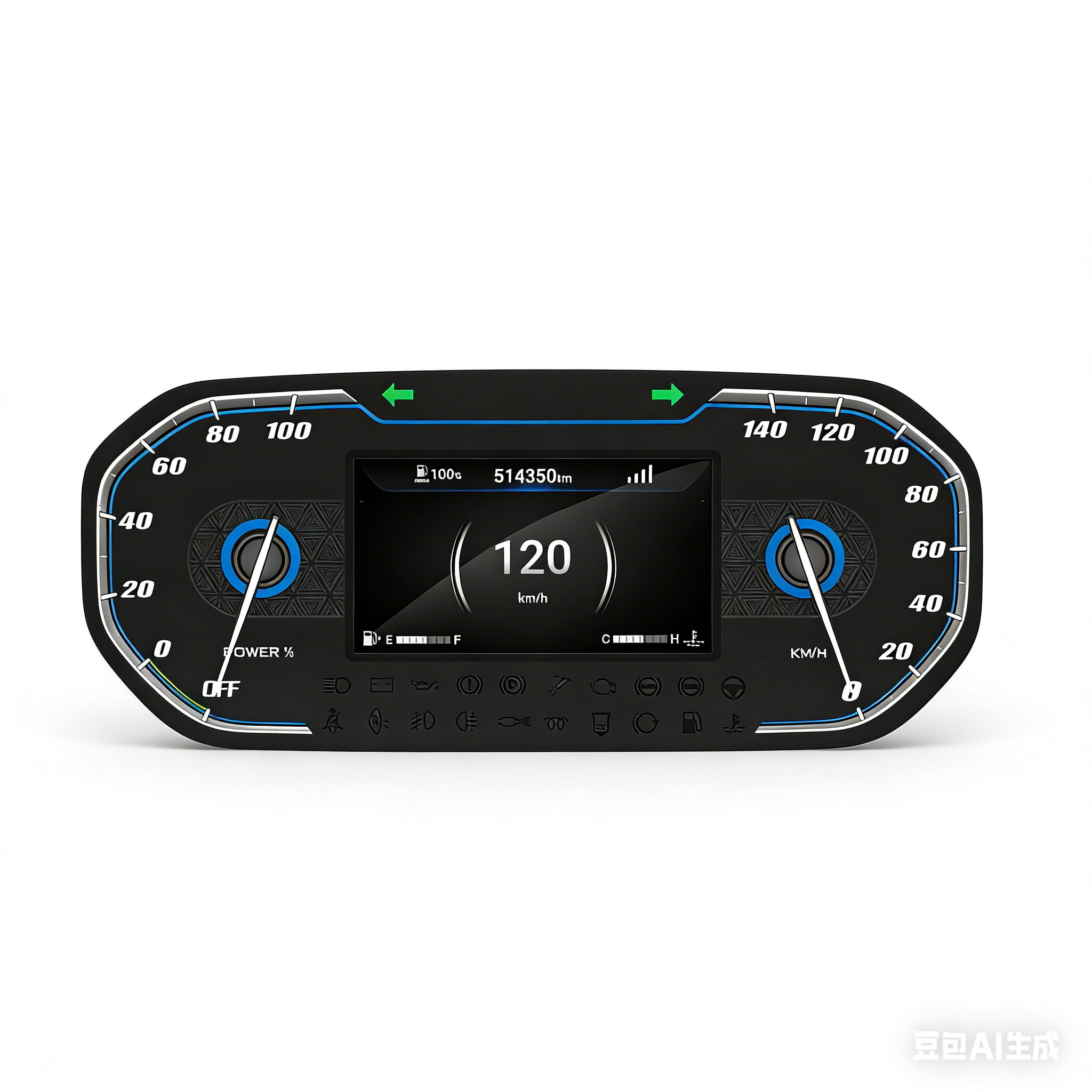

| LCD Instrument Display System (Driving Computer) | S | |
| Tire Pressure Monitoring System | — | |
| AC | S | |
| Can Bus CAN | S | |
| Brake Energy Recovery | S | |
| Pedestrian Reminder | S | |
| Turning Reminder | — | |
| Adjustable Multi-function Steering Wheel | S | |
| Electric Height Adjustment of Headlamp | S | |
| Halogen Headlamp | S | |
| LED | O | |
| Automatic Induction Headlamp | S | |
| Daytime Running Light | — | |
| Remote Monitor System with T-BOX | S | |
| Battery Thermo Management (Electric Heating) | S | |
| Rearview Mirror with Electric Heating | — | |
| Seatbelt Unbuckle Warning | S | |
| Brake Shoe Clearance Automatic Adjustment | S | |
| Rear Shock Absorber | S | |
| 12V/24V Outlet (Cigar Lighter) | S | |
| "S" Standard; "O" Optional; "—" Not Available | ||
Company Advantages
--------------占位---------------
Diverse vehicle model inventory
Competitive factory-direct pricing
Strict pre-delivery inspection (PDI)
--------------占位---------------
The MAXUS eDeliver75 is a capable, technologically advanced, and environmentally friendly solution for modern businesses seeking to electrify their urban delivery fleets. It combines practical cargo capacity, a sufficient real-world driving range, fast charging, and a high level of standard safety and comfort features, making it a strong contender in the global electric light commercial vehicle market.
The EC300 series delivers powerful, emission-free logistics with two range options. Built on a robust 6-ton GVW chassis, it handles demanding loads with ease. The efficient Inovance e-drive system provides 120 kW peak power and 360 N·m torque, tackling 30% gradients effortlessly. Choose between the 86.55 kWh model (232 km full-load range) or extended 100.464 kWh version (269 km full-load range), both featuring 1.2-hour DC fast charging. The driver-focused cabin includes a multi-function steering wheel, LCD display, and T-BOX remote monitoring as standard. Designed for reliability, it combines durable suspension, ABS+EBD safety systems, and optional LED lighting. The EC300 series—where electric performance meets commercial durability.
Meet the ES80, your efficient partner for sustainable city logistics. Powered by a robust CATL 53.58kWh battery, it delivers a 180km full-load range on a single charge, with fast charging in just 1.5 hours. Its MAXUS electric drive axle (100kW/270N.m) provides strong, quiet power, handling a 4-ton GVW with ease. Designed for the modern driver, it comes equipped with smart features including a remote T-BOX monitoring system, LCD dashboard, cruise control, and safety tech like ESC. Compact, capable, and connected — the ES80 is built to transform urban delivery.
