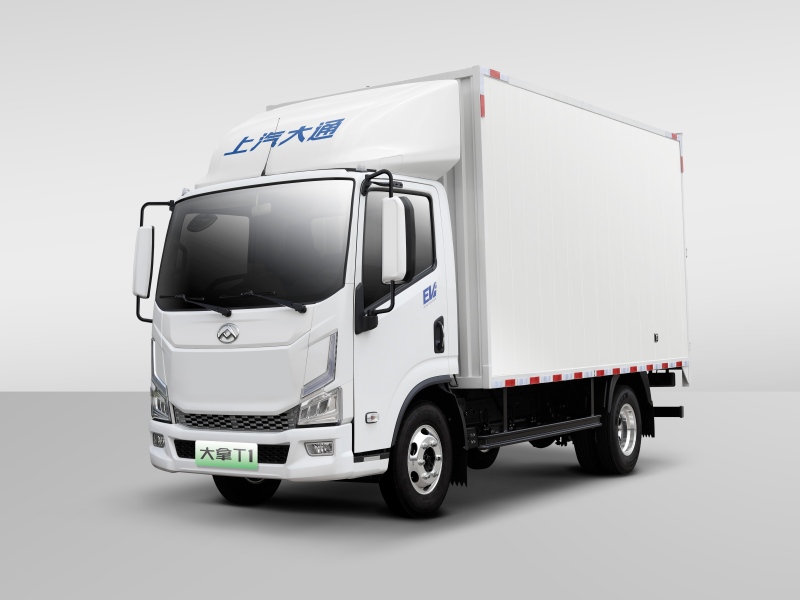

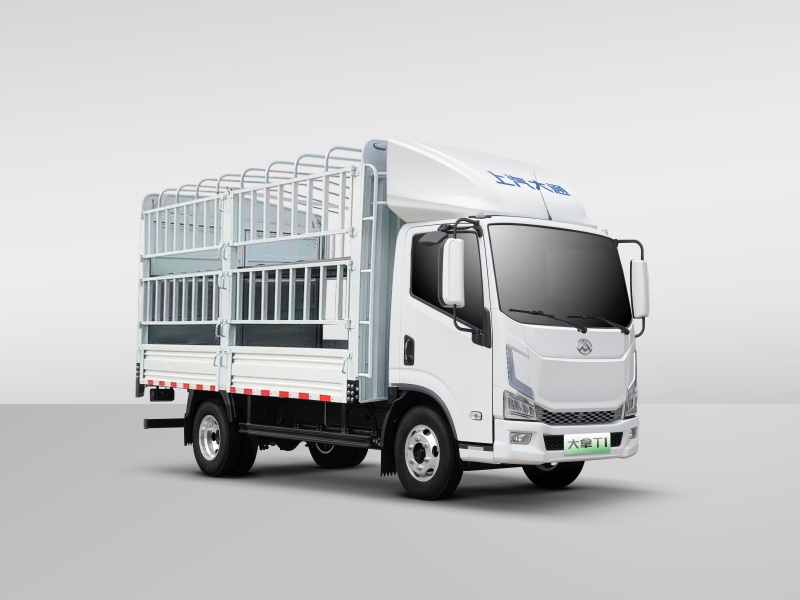

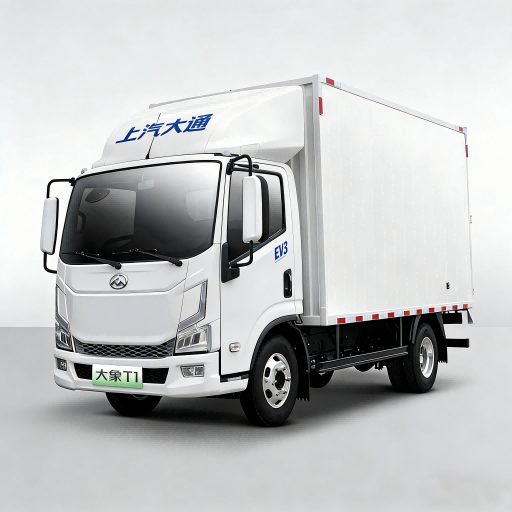

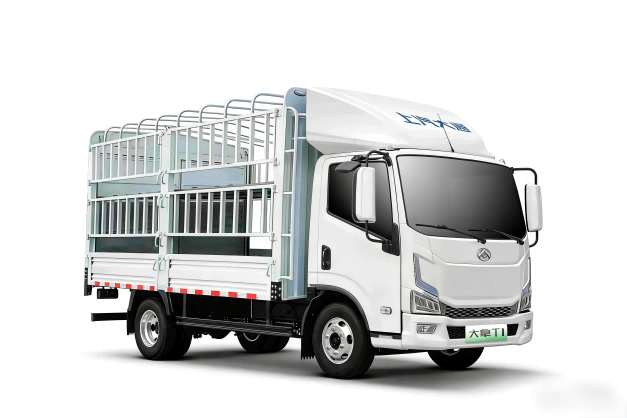

The EC300 series delivers powerful, emission-free logistics with two range options. Built on a robust 6-ton GVW chassis, it handles demanding loads with ease. The efficient Inovance e-drive system provides 120 kW peak power and 360 N·m torque, tackling 30% gradients effortlessly.
Choose between the 86.55 kWh model (232 km full-load range) or extended 100.464 kWh version (269 km full-load range), both featuring 1.2-hour DC fast charging. The driver-focused cabin includes a multi-function steering wheel, LCD display, and T-BOX remote monitoring as standard.
Designed for reliability, it combines durable suspension, ABS+EBD safety systems, and optional LED lighting. The EC300 series—where electric performance meets commercial durability.
G.V.W. (kg) :
6000Payload (kg) :
3650Wheelbase (mm) :
3360Capacity (kWh) :
86.55/100.464Driving Range (Full Load, Comprehensive Condition ) :
232/269 km
Product Overviews
EC300 Light Truck: Comprehensive Product Overview
● Electric Powertrain Performance: Powered by a high-efficiency electric drive system from Inovance, delivering peak power of 120 kW and peak torque of 360 N·m, ensuring robust performance and a maximum gradeability of 30%.

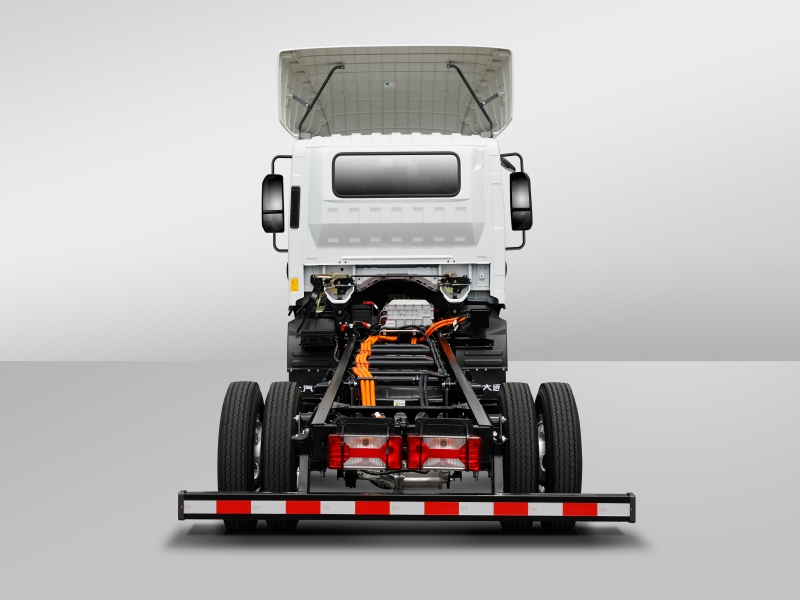

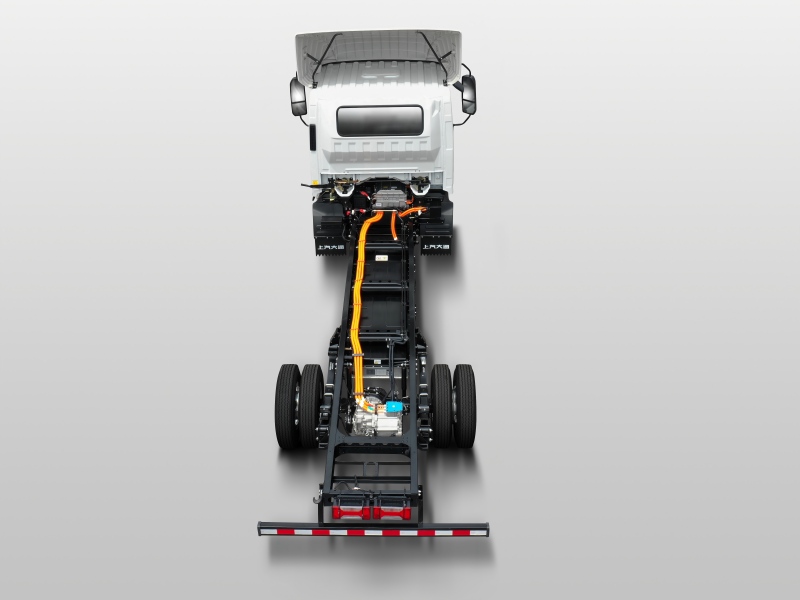

● Exceptional Payload Capacity: Engineered with a reinforced chassis to support a Gross Vehicle Weight (GVW) of 6,000 kg, making it capable of handling heavy-duty urban and regional logistics demands.

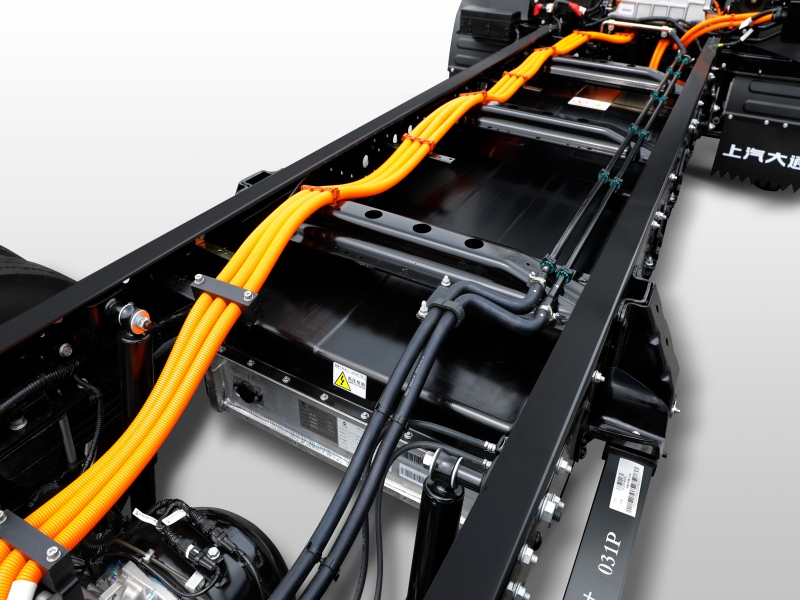

● Long-Range Flexibility: Available with two high-capacity CATL battery options (86.55 kWh and 100.464 kWh), offering a real-world range of up to 269 km under full-load conditions and fast DC charging in just 1.2 hours.

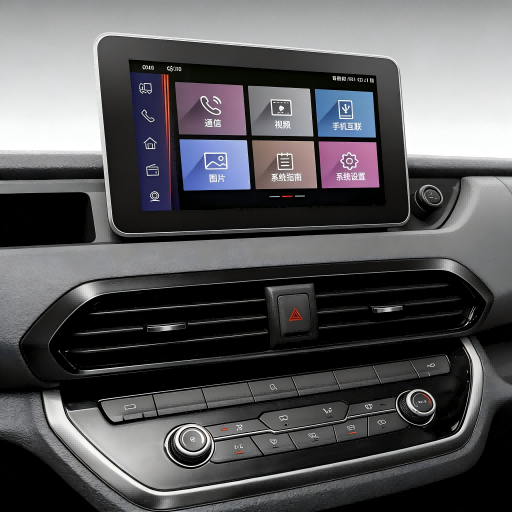

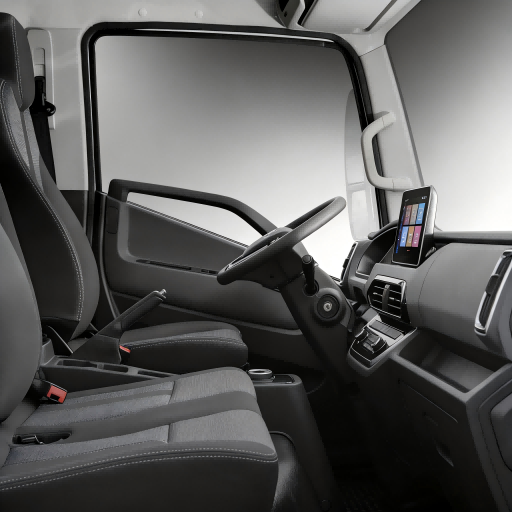

● Driver-Focused Cabin: Designed with a spacious three-seat cabin, standard multi-function steering wheel, LCD instrument display, and optional 10-inch touchscreen for enhanced comfort and connectivity.
--------------占位---------------
Product Details
--------------占位---------------
Product Specifications
| Weight | GVW | 6000 | 6000 |
| CVW | 2340（cab&chassis） | 2380（cab&chassis） | |
| Load Distribution（FRT/RR axle） | 2200/5000 | 2200/5000 | |
| Full-Load Distribution（FRT/RR axle) | 2010/3990 | 2020/3980 | |
| No-Load Distribution（FRT/RR axle） | 1470/1520 | 1500/1540 | |
| Dimension (mm) | Overall Size (L*W*H) （Excluding rearview mirror ） |
5966×2015×2270 | 5966×2015×2270 |
| Overall Size (L*W*H) （Including rearview mirror ） |
5966×2550×2270 | 5966×2550×2270 | |
| Overall Size (L*W*H) （Rearview mirror folded) ） |
5966×2246×2270 | 5966×2246×2270 | |
| Wheelbase | 3360 | 3360 | |
| Front/Rear Overhang | 1118/1488 | 1118/1488 | |
| Front/Rear Tread | 1610/1580 | 1610/1580 | |
| Frame Beam Section Size | 190*65*4.5 | 190*65*4.5 | |
| Cab | Type | Single Cabin | Single Cabin |
| Width (mm) | 1885 | 1885 | |
| Seat No. | 3 | 3 | |
| Battery Pack | Manufacturer/Capacity | CATL/86.55kWh | CATL/100.464kWh |
| Layout | Tile | Tile | |
| Material | Lithium Phosphate Battery | Lithium Phosphate Battery | |
| Pack No. | 1 | 1 | |
| System weight (kg) | 598 | 642 | |
| Energy Density（Wh/kg） | 150.01 | 159.56 | |
| Rated Voltage（V） | 540 | 502.32 | |
| Current (Ah) | 160 | 200 | |
| Charging Port Standard | GB/T | GB/T | |
| Charging Mode | DC | DC | |
| Max. Charging Power（kW） | 94.08 | 109.2 | |
| Charging Time (h) | 1.2 | 1.2 | |
| Driving Range (Full Load Comprehensive Condition ) (km) | 232 | 269 | |
| Driving Range (Half Load with Constant Speed of 40km/h ) (km) | 446 | 517 | |
| Power Consumption (kWh per 100km, constant speed) | 21.6kWh@40km/h | 21.6kWh@40km/h | |
| Liquid Cooling | ○ | ○ | |
| Electric Film Heating | S | S | |
| e-Motor |
Brand | Inovance | Inovance |
| Model | TZ210XS104 | TZ210XS104 | |
| Driving Type | Motor directly connected with rear axle Rear-wheel drive |
Motor directly connected with rear axle Rear-wheel drive |
|
| Rated/Peak Power (kW) | 60/120 | 60/120 | |
| Rated/Peak Torque (N.m) | 160/360 | 160/360 | |
| Max. Speed (rpm) | 12000 | 12000 | |
| Max. Climbing Ability (%) | 30 | 30 | |
| Max. Speed (km/h) | 100 | 100 | |
| Chassis | No. of Rear Tires | Rear Double Tire | Rear Double Tire |
| Tire Size | 7.00R16LT 8PR | 7.00R16LT 8PR | |
| Gearbox Model | N/A | N/A | |
| Gearbox Gear Ratio | N/A | N/A | |
| RR Axle Ratio | 5.286 | 5.286 | |
| Steering | Electric Power Steering | Electric Power Steering | |
| Front Suspension | Leaf spring 3 PCS | Leaf spring 3 PCS | |
| Rear Suspension | Leaf spring 3+3 PCS | Leaf spring 3+3 PCS | |
| Service Brake | Hydraulic braking FR disc/ RR drum |
Hydraulic braking FR disc/ RR drum |
|
| Parking Brake | Pulling cable Central Drum |
Pulling cable Central Drum |
|
| Transmission PTO interface | — | — | |
| High Voltage Power Supply | O | O | |
| ABS+EBD | S | S | |
| ESC | — | — | |
| AEBS+LDW | — | — | |
| Forward Collision Warning（FCW） | — | — | |
| Speed Limit (90km/h) | S | S | |
| Cruise Control | S | S | |
| Radio+USB+Bluetooth | S | S | |
| 10 Inch Touch Screen | O | O | |
| LCD Instrument Display System (Driving Computer) | S | S | |
| Tire Pressure Monitoring System | — | — | |
| AC | S | S | |
| Can Bus | S | S | |
| Brake Energy Recovery | S | S | |
| Pedestrian Reminder | S | S | |
| Turning Reminder | — | — | |
| Adjustable Multi-function Steering Wheel | S | S | |
| Headlamp Height Adjustable (electric) | S | S | |
| Halogen Headlamp | S | S | |
| LED大灯LED Headlamp | O | O | |
| Automatic Induction Headlamp | S | S | |
| Daytime Running Light | S | S | |
| Remote Monitoring System (with T-BOX) | S | S | |
| Battery Heat Management (Electric Heating) | S | S | |
| Power-adjusted electric heating Rearview Mirror | O | O | |
| Seatbelt Unbuckle Warning | S | S | |
| Brake Shoe Self-adjust | S | S | |
| Rear Shock Absorber | S | S | |
| Single Battery Voltage 12V） | S | S | |
| ● Standard； ○ Optional ； — Not Available | |||
